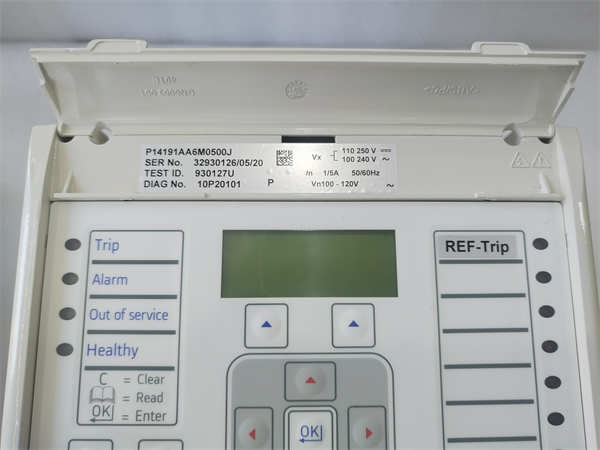

ALSTOM MiCOM P40 Agile P141

ALSTOM MiCOM P40 Agile P141是一款先進的饋線保護繼電器，屬于ALSTOM（現為GE Grid Solutions）的MiCOM P40 Agile系列。它主要用于配電和輸電系統的饋線保護，提供全面的過電流、接地故障保護、自動重合閘等功能，以確保電力系統的安全穩定運行。

產品特點

功能全面:涵蓋過電流、接地故障、方向過電流、距離保護等多種保護功能，并具備自動重合閘、測控等功能。

靈活性強:可配置性高，適應多種網絡拓?fù)浜捅Ｗo(hù)方案。

可靠性高:采用先進的硬件和軟件技術，具有很高的可靠性和穩定性。

通信功能強大:支持多種通信協議，方便集成到SCADA系統中。

易于使用:人機界面友好，配置簡單。

產品功能

過電流保護:檢測并切斷過電流故障。

接地故障保護:檢測并切斷接地故障。

方向過電流保護:根據故障方向選擇性動作。

距離保護:根據故障距離選擇性動作。

自動重合閘:在故障清除后自動恢復供電。

測控功能:提供豐富的測量和控制功能。

產品應用

配電系統:用于配電線路的保護和控制。

輸電系統:用于輸電線路的保護和控制。

工業企業:用于工業企業的配電系統。

發電廠:用于發電廠的饋線保護。

產品參數

電壓等級:中壓、高壓

電流等級:適用于各種電流等級

通信協議:支持多種通信協議，如IEC 60870-5-101、MODBUS等

環境條件:適用于各種惡劣環境

產品規格

防護等級:IP54

產品系列

MiCOM P40 Agile系列:該產品屬于ALSTOM MiCOM P40 Agile系列，是該系列中的一款重要產品。

總結

ALSTOM MiCOM P40 Agile P141是一款功能強大、可靠性高的饋線保護繼電器，在電力系統中發揮著重要的作用。它能夠有效地保護電力設備，提高電力系統的可靠性。

英文版

ALSTOM MiCOM P40 Agile P141 Product Description

Overview

The ALSTOM MiCOM P40 Agile P141 is an advanced feeder protection relay belonging to the ALSTOM(now GE Grid Solutions)MiCOM P40 Agile series.It is primarily used for feeder protection in distribution and transmission systems,providing comprehensive overcurrent,earth fault protection,auto-reclosing,and other functions to ensure the safe and stable operation of the power system.

Features

Comprehensive Functions:Covers a variety of protection functions,including overcurrent,earth fault,directional overcurrent,distance protection,auto-reclosing,and measurement and control functions.

High Flexibility:Highly configurable to adapt to various network topologies and protection schemes.

High Reliability:Employs advanced hardware and software technologies,offering high reliability and stability.

Powerful Communication:Supports multiple communication protocols for easy integration into SCADA systems.

User-Friendly:Features a user-friendly interface and is easy to configure.

Functions

Overcurrent Protection:Detects and interrupts overcurrent faults.

Earth Fault Protection:Detects and interrupts earth faults.

Directional Overcurrent Protection:Selectively operates based on fault direction.

Distance Protection:Selectively operates based on fault distance.

Auto-Reclosing:Automatically restores power supply after fault clearance.

Measurement and Control:Provides a rich set of measurement and control functions.

Applications

Distribution Systems:Used for the protection and control of distribution lines.

Transmission Systems:Used for the protection and control of transmission lines.

Industrial Enterprises:Used in the distribution systems of industrial enterprises.

Power Plants:Used for feeder protection in power plants.

Specifications

Voltage Level:Medium voltage,high voltage

Current Rating:Suitable for various current ratings

Communication Protocols:Supports multiple communication protocols such as IEC 60870-5-101,MODBUS

Environmental Conditions:Suitable for various harsh environments

Dimensions

Size:Varies depending on the model

Weight:Varies depending on the model

Protection Rating:IP54
